KJ&C, the company that produces the convenient products in the harmony with nature

Quick Clip Wood Block Design Fence Sealant COCONOID

Quick Clip

EZWOODQuick Clip

If Quick Clip is used, the construction is fast,
anyone can easily install and it is cost-efficient.

  • Installation is faster 3 times than general deck
  • Convenient repair and maintenance
  • Comfortable sense of walk due to having special
    vibration-proof rubber
  • Safe and neat due to not exposing the nail
  • Eco-friendly product
  • Long-term warrantee is possible due to excellent durability
  • Suitable for installation at -60 ℃ or below
  • More cohesive product

in consideration of the environment
In pursuit of convenience and simplicity
It's an economical deck module

What is Quick Clip? (B Type)

Generally, when installing the lumber deck material, if the construction is made using fixing materials such as nail, screw, etc. it is rigid and stable but since the nail, screw and screw head are exposed, it is not good aesthetically and there is concern over safety accident. In addition, its disadvantage is that the repair is not easy and the construction time is long. There is clip construction without exposing the nail, screw, screw head, etc. by improving the general deck construction but repair is difficult when the defect may be found and the installation time is long and the cost is high. Quick Clip is the module for deck developed by maximizing the advantage of clip construction and complementing the disadvantages.

Quick Clip B Type is a premium deck module with an iron clip that fastens wood more firmly in dndareas than Quick Clip A Type.

Advantage of Quick Clip B Type

  • Excellent fastening

    EZWOOD's Quick Clip B Type is
    excellent in fastening.

  • -60℃ or less

    EZWOOD's Quick Clip B Type can be
    installed even at lower temperatures.

  • Premium

    EZWOOD's Quick Clip B Type is
    excellent in fastening.

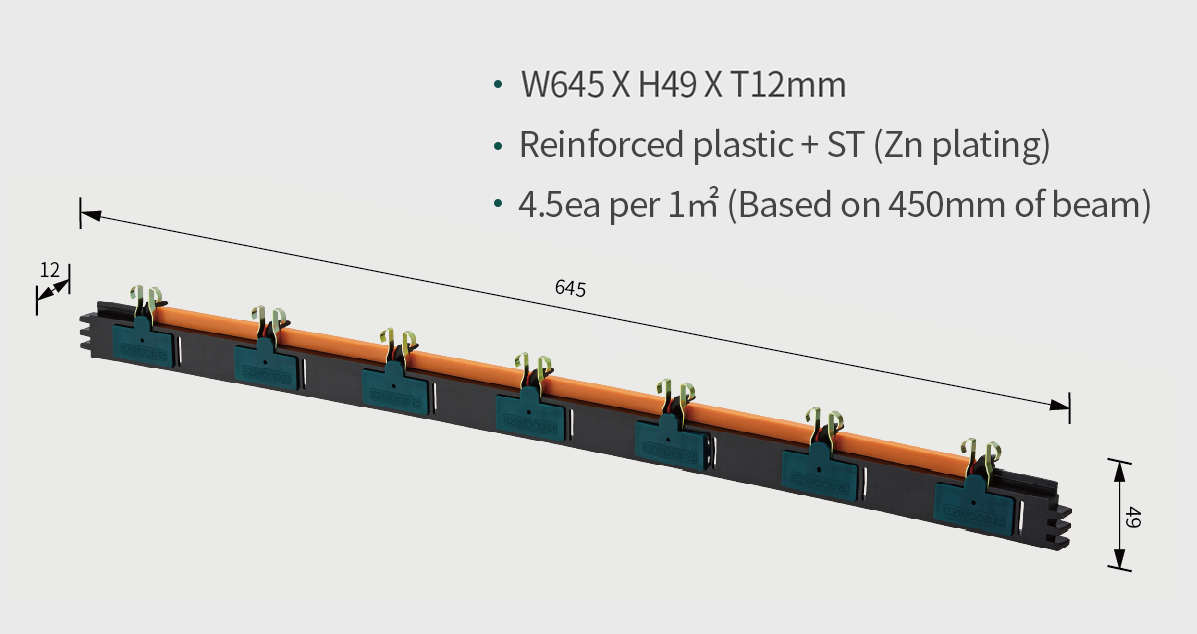

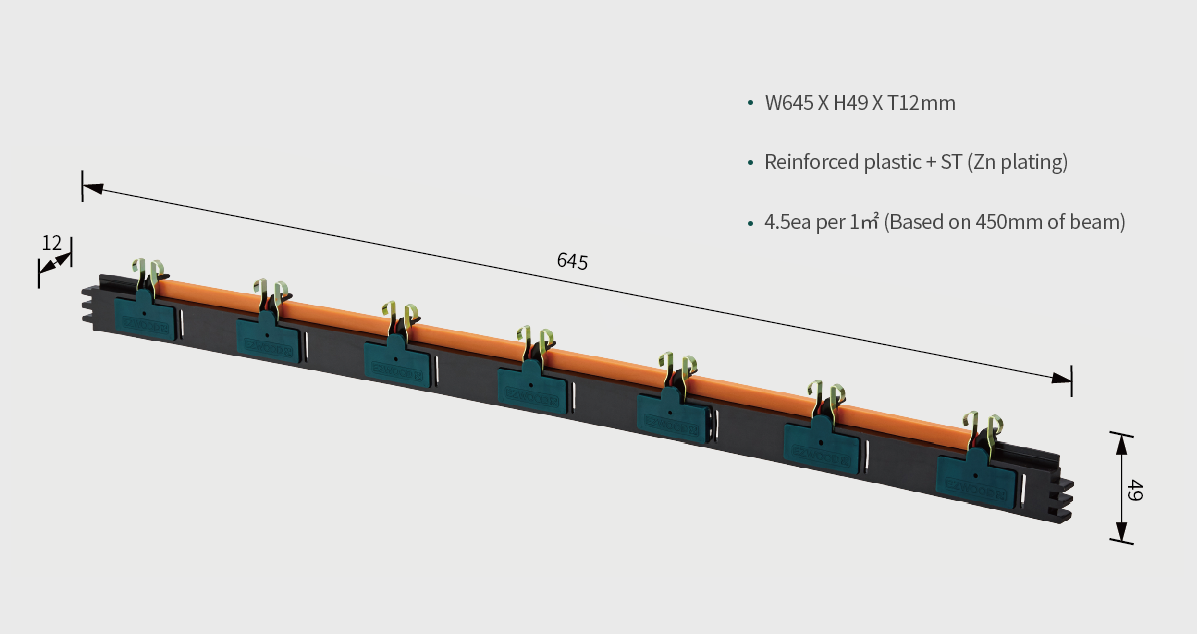

Material and Dimension of Quick Clip B Type

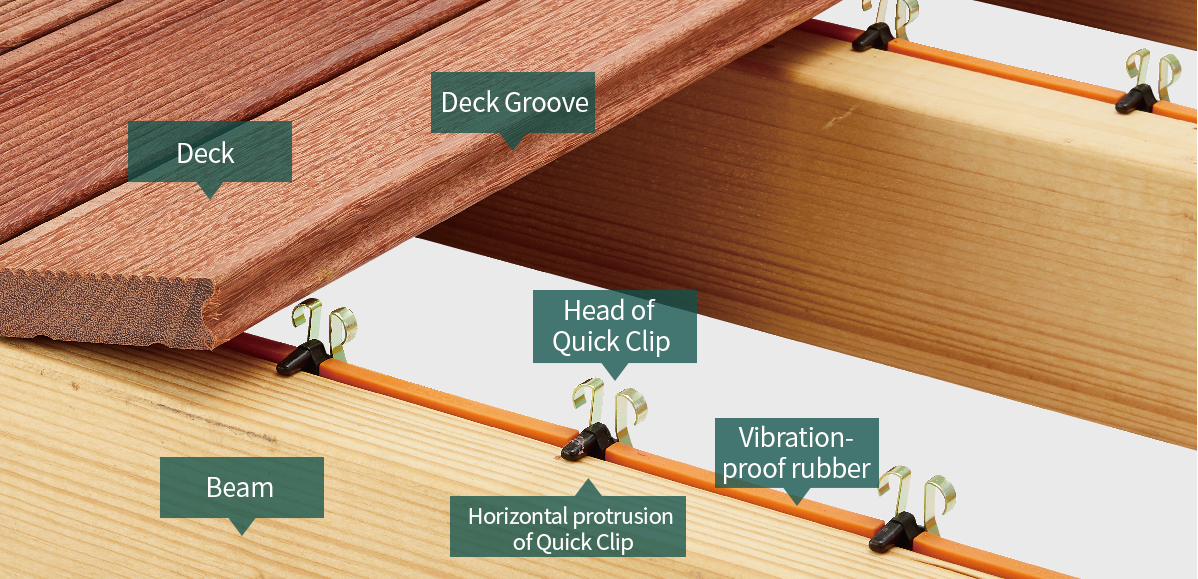

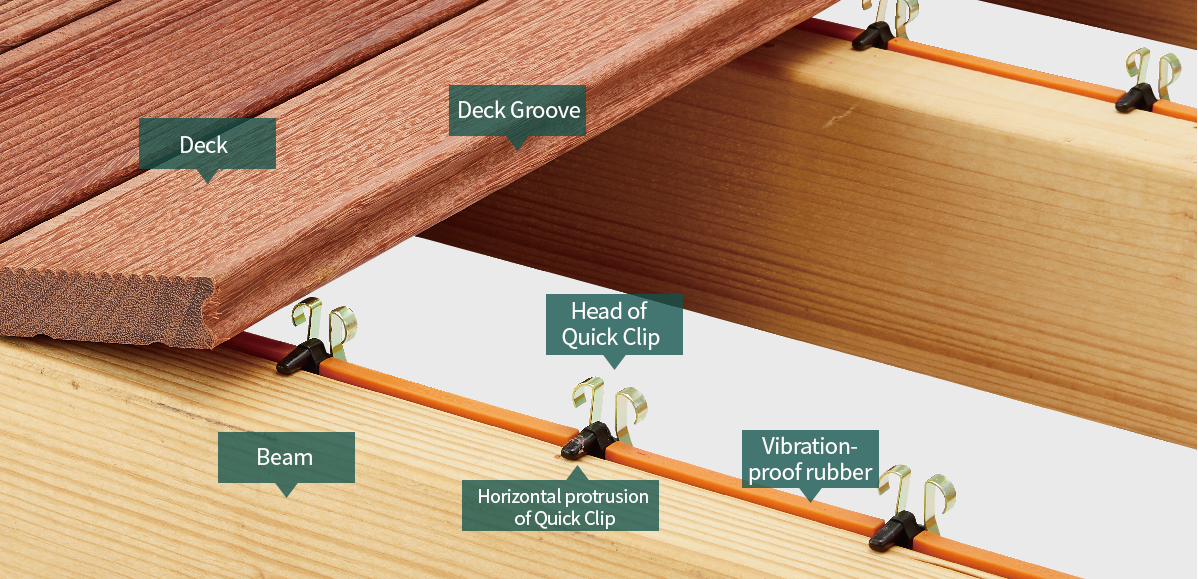

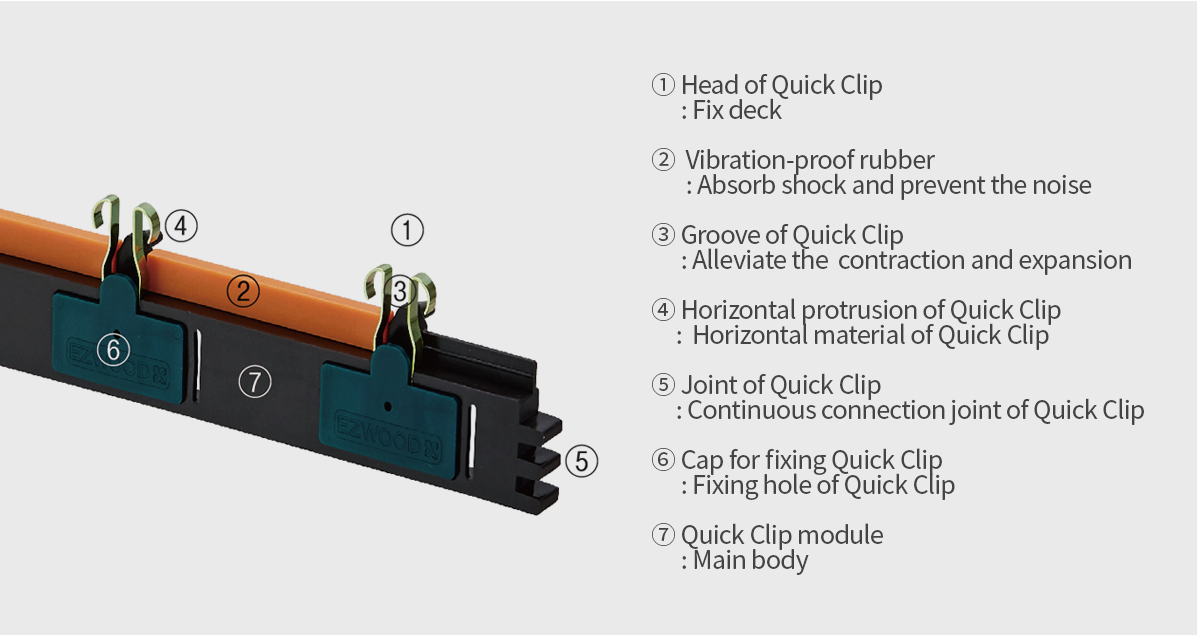

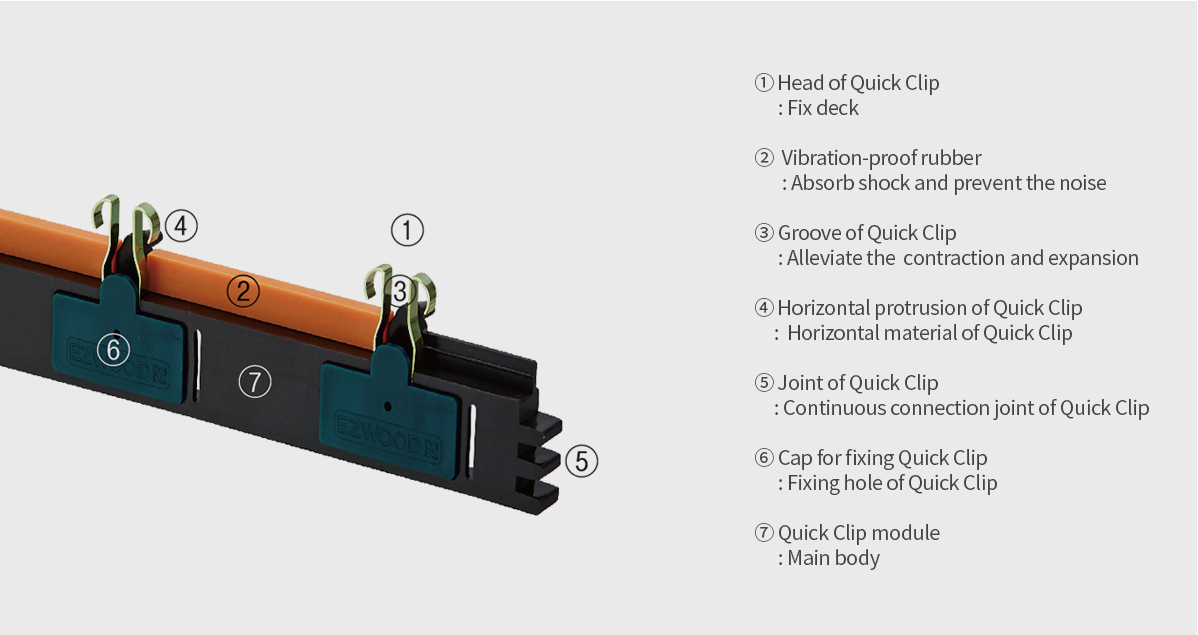

Name of Function of Quick Clip

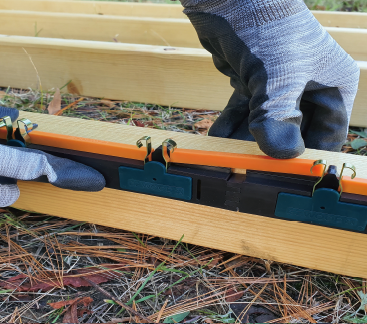

How to Install Quick Clip B Type

  1. 1

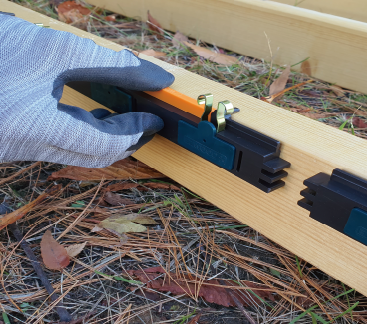

    Attach the Quick clip to joist.

  2. 2

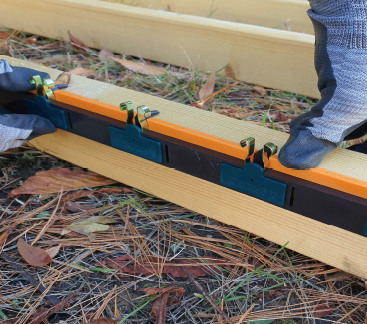

    Make sure the bumps for the flat level of the Quick Clip are evenly placed with a joist.

  3. 3

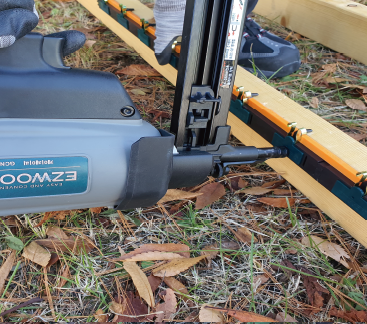

    Fix a quick clip to the joist.

  4. 4

    Fix the Quick clips continuous and place shock-absorbing rubbers on the Quick clip where it is marked.

  5. 5

    Apply dedicated sealant to the top of the wood depending on the working environment.

  6. 6

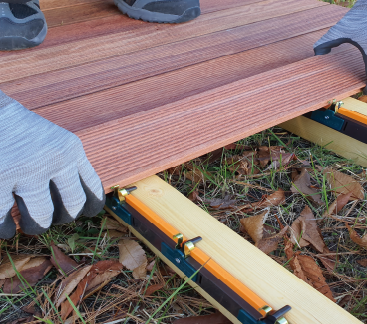

    Press the deck from the top so that the groove on the side of the deck is fixed between the quick clip's bumps.

Specification

Division Durability Material Environmental Product usage Environment Usage Price Remarks
Body Rubber Clip Inside Outside -60°C or less
A Type ★★★★☆ PP TPE PP ECO ● ●   For walking Contact
B Type ★★★★★ PP TPE ST ECO ● ● ● For walking Contact




Quick Clip Video B Type

If Quick Clip is used, the construction is fast, anyone can easily install and it is cost-efficient
